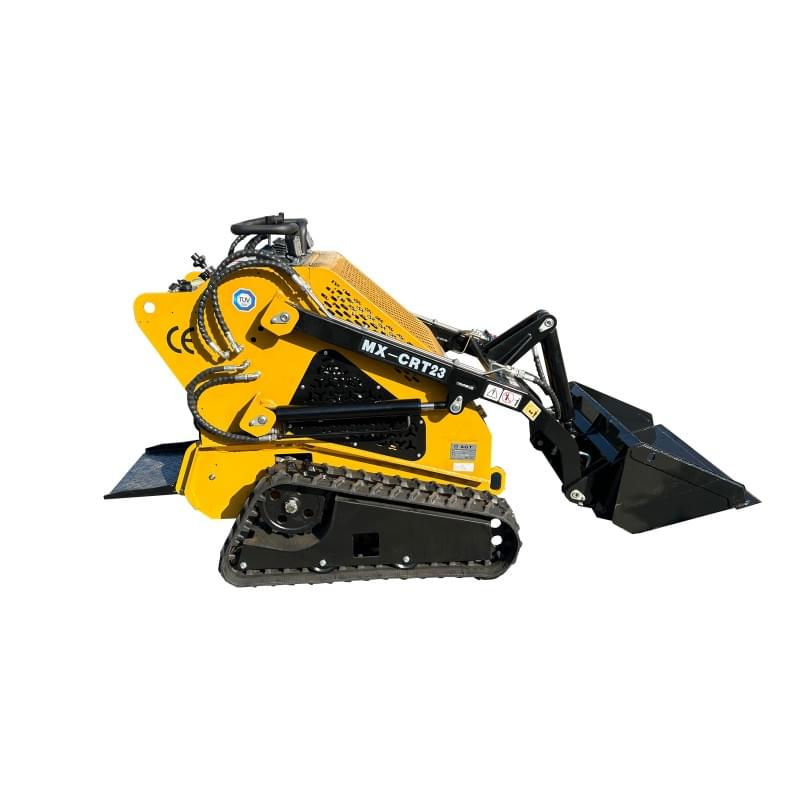

1 ton, RATO engine Mini Skid Steer | MX-CRT23
Description
Compact and manoeuvrable, the MX-CRT23 is a 1-tonne skid steer loader running a RATO engine for constrained sites and finished ground.
Well matched to landscaping, groundworks support, yard work and general material handling in confined space.
Parts availability and simple mechanical layout keep maintenance within reach of an owner-operator rather than a main dealer.
Features
Bucket Capacity: 0.1 m³
Travel Speed: 4 km/h
Max Lifting Force: 200 kg
Reach at Max Unloading Height: 661 mm
Max Horsepower: 24 ps
Max Power: 17 kW @ 3600 rpm
Engine Oil Capacity: 1.6 L
Bucket Width: 812 mm
Specifications
Bucket Capacity: 0.1 m³
Travel Speed: 4 km/h
Max Lifting Force: 200 kg
Max Working Height: 2285 mm
Max Pin Height: 1967 mm
Max Unloading Height: 1575 mm
Reach at Max Unloading Height: 661 mm
Wheelbase: 905 mm
Ground Clearance: 163 mm
Bucket Discharge Angle: 23°
Max Horsepower: 24 ps
Max Power: 17 kW @ 3600 rpm
Fuel Type: 92# Gasoline
Fuel Tank: 19.6 L
Engine Oil Capacity: 1.6 L
Bucket Width: 812 mm
Overall Length: 2135 / 2432 mm
Overall Width: 904 mm
Overall Height: 1364 mm
Body Width: 810 mm
Slewing Radius: 1493 mm
Hydraulic Tank: 33 L
Operating Class: 1 ton
Engine: RATO
Figures as published for this model; confirm critical dimensions before ordering.
