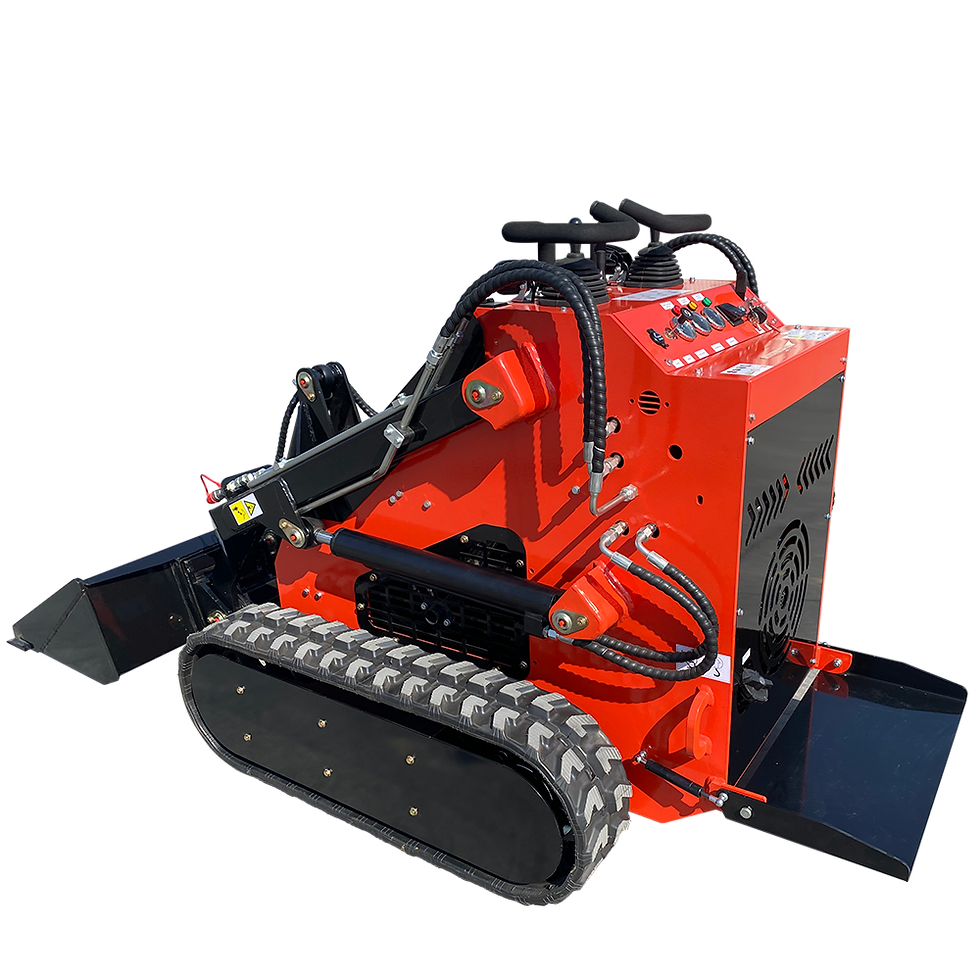

1 Ton, RATO Engine Mini Skid Steer Track Loader | LRT23

Description

Compact and manoeuvrable, the LRT23 is a 1-tonne skid steer loader running a RATO engine for constrained sites and finished ground.

The is a track style mini skid steer loader designed for compact construction work. It has a quick attach mount plate which makes it easy for an operator to connect different attachments. The loader is designed for operation in temperatures typically experienced in earth moving and construction work environments.

A quick-attach coupler means buckets and tools swap in under a minute without knocking out pins. The tracked undercarriage keeps ground pressure low and grip high on wet or loose material. An auxiliary hydraulic circuit opens the machine up to breakers, augers, grapples and cutters.

Well matched to landscaping, groundworks support, yard work and general material handling in confined space.

Features

• Quick-attach coupler

• Rubber tracked undercarriage

• Auxiliary hydraulics

• Max.Load Capacity: 200 kg

• Bucket Capacity: 0.15 m³

• Traveling Speed: 0-6 km/h

• Total Weight: 890 kg

• Output power: 17.1KW(23HP)/3600rpm

Specifications

• Max.Load Capacity: 200 kg

• Bucket Capacity: 0.15 m³

• Maximum Lift: 375 kg

• Traveling Speed: 0-6 km/h

• Rated Pressure: 17 Mpa

• Lifting Time: 4.3 s

• Descent Time: 3.3 s

• Tipping Time: 1.5 s

• Maximum Angle of the climb: 30°

• Total Weight: 890 kg

• Engine: R740 engine

• Output power: 17.1KW(23HP)/3600rpm

• Fuel consumption: ≤6.7 L/h

• Fuel Tank Capacity: 25 L

• Hydraulic Tank Capacity: 25L

• Engine oil tank capacity: 1.6 L

• Operation Weight: 0.98 Ton

• Horse Power: 23

• Max Angle: 30 Degree

• Auxiliary Hydraulic Flow Rate: 20 liters per minute (L/min).

• Travel System Flow Rate: 25 liters per minute (L/min).

• Operating Class: 1 ton

Figures as published for this model; confirm critical dimensions before ordering.
