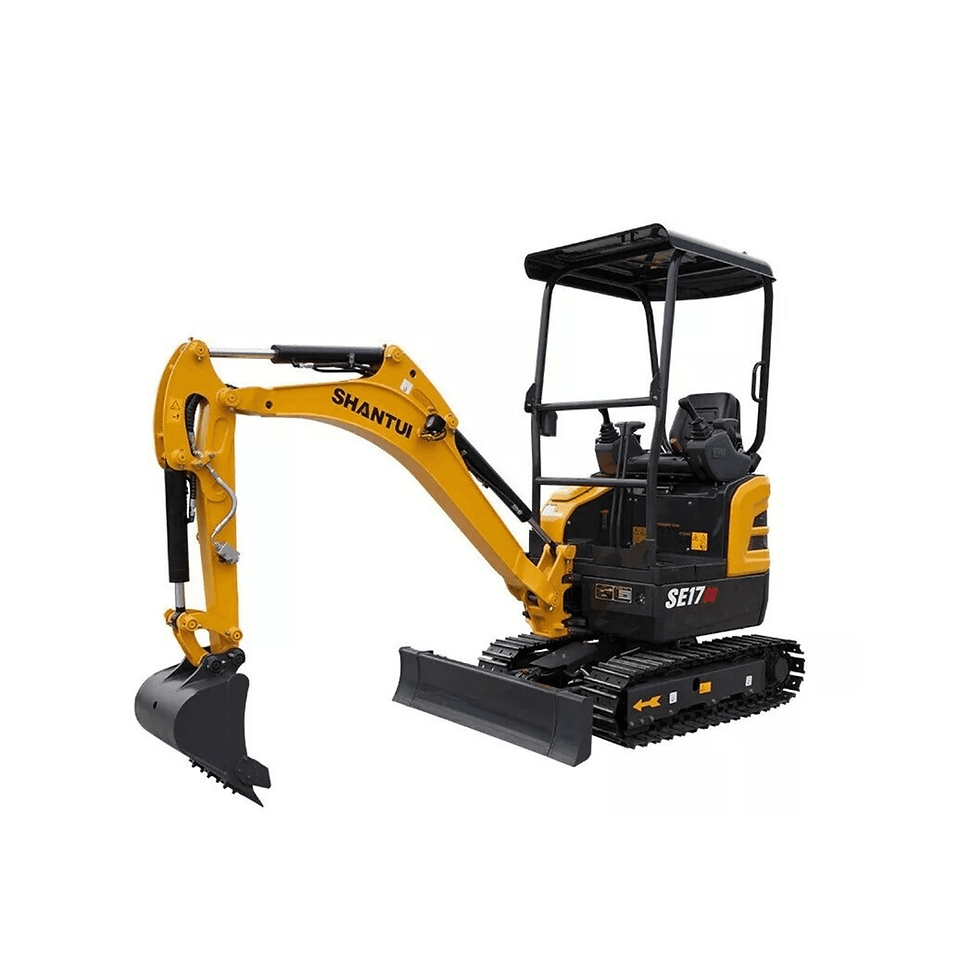

1.8 Ton, Kubota Diesel Engine Mini Excavator | SE17SR
Description
Compact and straightforward, the SE17SR is a 1.8-tonne mini excavator running a Kubota diesel engine designed for trenching, footings and landscape work.
The 1.8 Ton Mini Excavator is engineered for exceptional performance in tight spaces, delivering power and versatility for your toughest jobs. Powered by a Kubota 3-cylinder Tier 4 diesel engine, this compact powerhouse offers efficient fuel consumption and low emissions, making it a reliable choice for environmentally conscious projects. Technical Data: Operation Weight: 1.8 Ton Engine: Tier 4 Diesel Engine Horse Power: 13.5 Max Angle: 30 Degree Features: Kubota Compact 3-Cylinder Tier 4 Diesel Engine: Provides smooth, reliable power with superior fuel efficiency and reduced emissions.
Boom offset lets the machine trench parallel to an obstruction while the tracks stay square to the run. Quick-attach mounting keeps changeover time down when a job needs several different tools.
Common jobs include utility trenching, foundation digging, landscape reshaping, and site clearance where lorries and larger machines cannot get in.
In the 1.5 to 2.4 tonne band you gain useful breakout force and reach while transport stays within a standard plant trailer.
Features
Side-swing boom
Quick-attach coupler
Operation Weight: 1.8 Ton
Horse Power: 13.5
Power Output: 16 HP (11.8 kW) at 2,300 RPM
Operating Weight: 1,800 kg
Maximum Digging Depth: 2,270 mm
Maximum Vertical Digging Depth: 1,910 mm
Specifications
Operation Weight: 1.8 Ton
Engine: Tier 4 Diesel Engine
Horse Power: 13.5
Max Angle: 30 Degree
Model: D902
Type: 3-cylinder, Tier 4 Diesel Engine
Power Output: 16 HP (11.8 kW) at 2,300 RPM

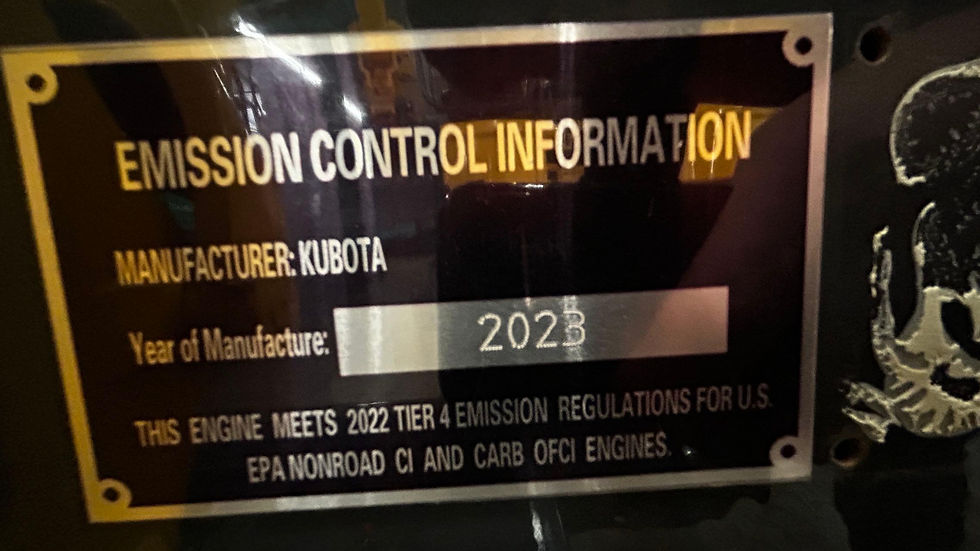

Emissions Compliance: EPA Tier 4F / Euro V
Operating Weight: 1,800 kg
Maximum Digging Depth: 2,270 mm
Maximum Digging Height: 3,535 mm
Maximum Dumping Height: 2,445 mm
Maximum Digging Radius: 3,910 mm
Maximum Vertical Digging Depth: 1,910 mm
Maximum Digging Distance at Ground Level: 3,845 mm
Minimum Turning Radius (Working Device): 1,495 mm
Maximum Lifting Height of Bulldozer Blade: 280 mm
Maximum Digging Depth of Bulldozer Blade: 190 mm
Overall Length: 3,575 mm
Overall Width: 990 mm (retractable to 1,300 mm)
Overall Height (to top of cab): 2,405 mm
Overall Height (to top of boom): 1,105 mm
Ground Length (During Transport): 2,440 mm
Ground Clearance of Counterweight: 460 mm
Figures as published for this model; confirm critical dimensions before ordering.
