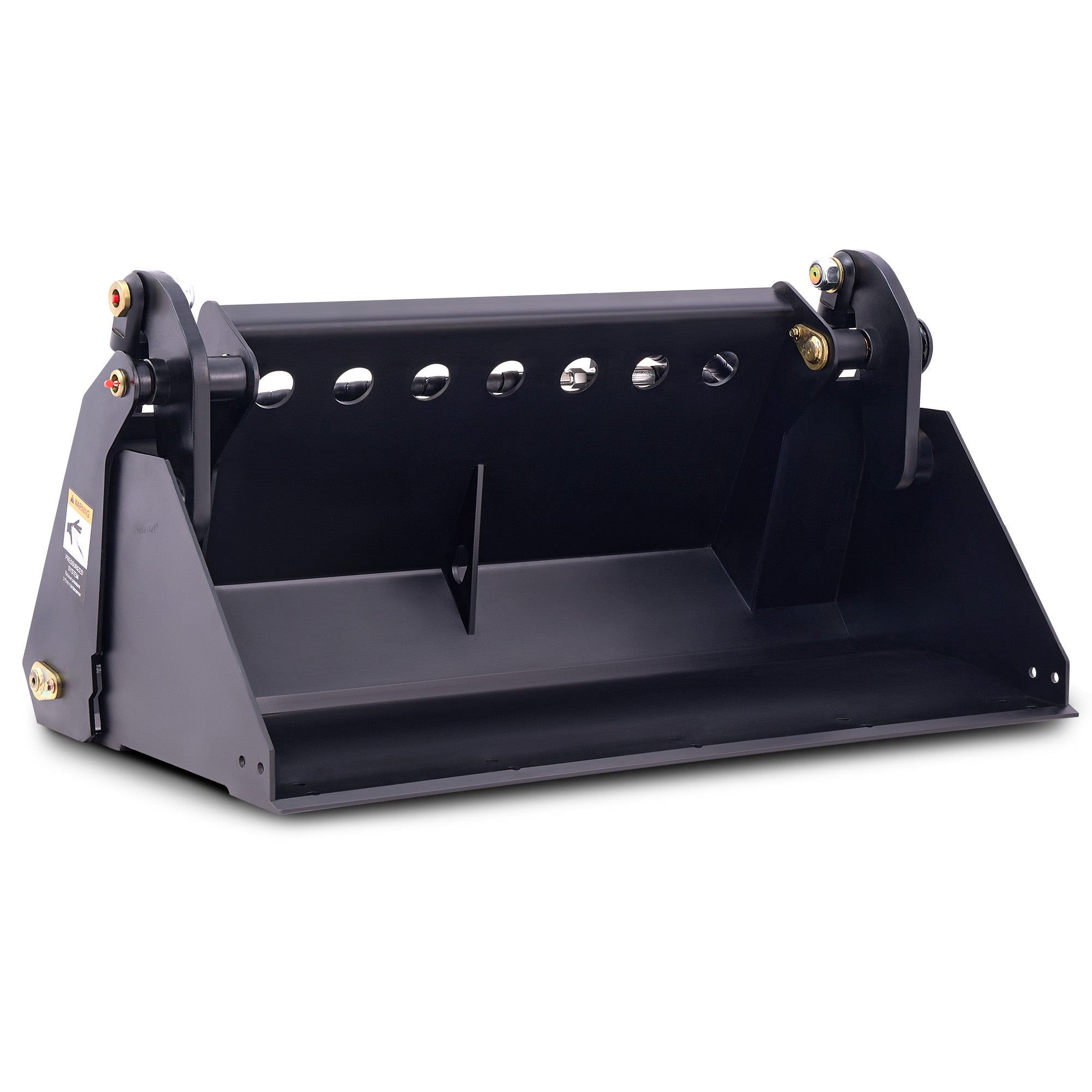

41" 4-in-1 Combo Mini Skid Steer Bucket Attach. with Quick Attach, Univ. Mount
Description
The 41" 4-in-1 Combo Mini Skid Steer Bucket is an attachment for mini skid steer loaders, adding capability without the cost of another machine.
Description When your skid steer is equipped with a 4-in-1 bucket from AHM, you can accomplish more tasks without the hassle of hauling additional attachments. Combining the functions of a standard bucket, dozer blade, clamp, and scraper, this mini skid steer bucket excels at bulldozing, clamming, backfilling, back dragging, scraping, bottom dumping, grabbing, digging, and more. With a 110° maximum jaw opening angle and a spacious 5 cu.
A quick-attach coupler means buckets and tools swap in under a minute without knocking out pins. A dozer blade at the front backfills trenches and grades the working area without another machine.
A toothed bucket breaks into hard and stony material far more readily than a smooth edge, making it the default choice for general excavation and trenching.
Confirm your carrier rated capacity and mounting plate standard; powered tools also need adequate auxiliary hydraulic flow.
Features
Quick-attach coupler
Backfill / dozer blade
Load Capacity: 240 lb. (109 kg)
Dozer Blade Width: 40.6 in. (103 cm)
Net Weight: 303.8 lb. (137.8 kg)
Working Width: 41 in
Specifications
Bucket Volume: 5 cu. ft. (0.14 m³)
Load Capacity: 240 lb. (109 kg)
Quick-Attach Coupler Size: 23.6 x 9.4 in. (60×24 cm)
Axis Pin Hole Spacing: 14.6 in. (37 cm)
Axis Pin Hole Diameter: 0.73 in. (18.6 mm)
Quick Coupler Extension Length: 2.4 in. (6 cm)
Dozer Blade Width: 40.6 in. (103 cm)
Max. Jaw Opening Angle: 110°
Hydraulic Hose Coupler Size: G1/2"
Product Dimensions: 40.6 x 27 x 20.5 in. (103x68.5x52 cm)
Net Weight: 303.8 lb. (137.8 kg)
Working Width: 41 in
Figures as published for this model; confirm critical dimensions before ordering.
