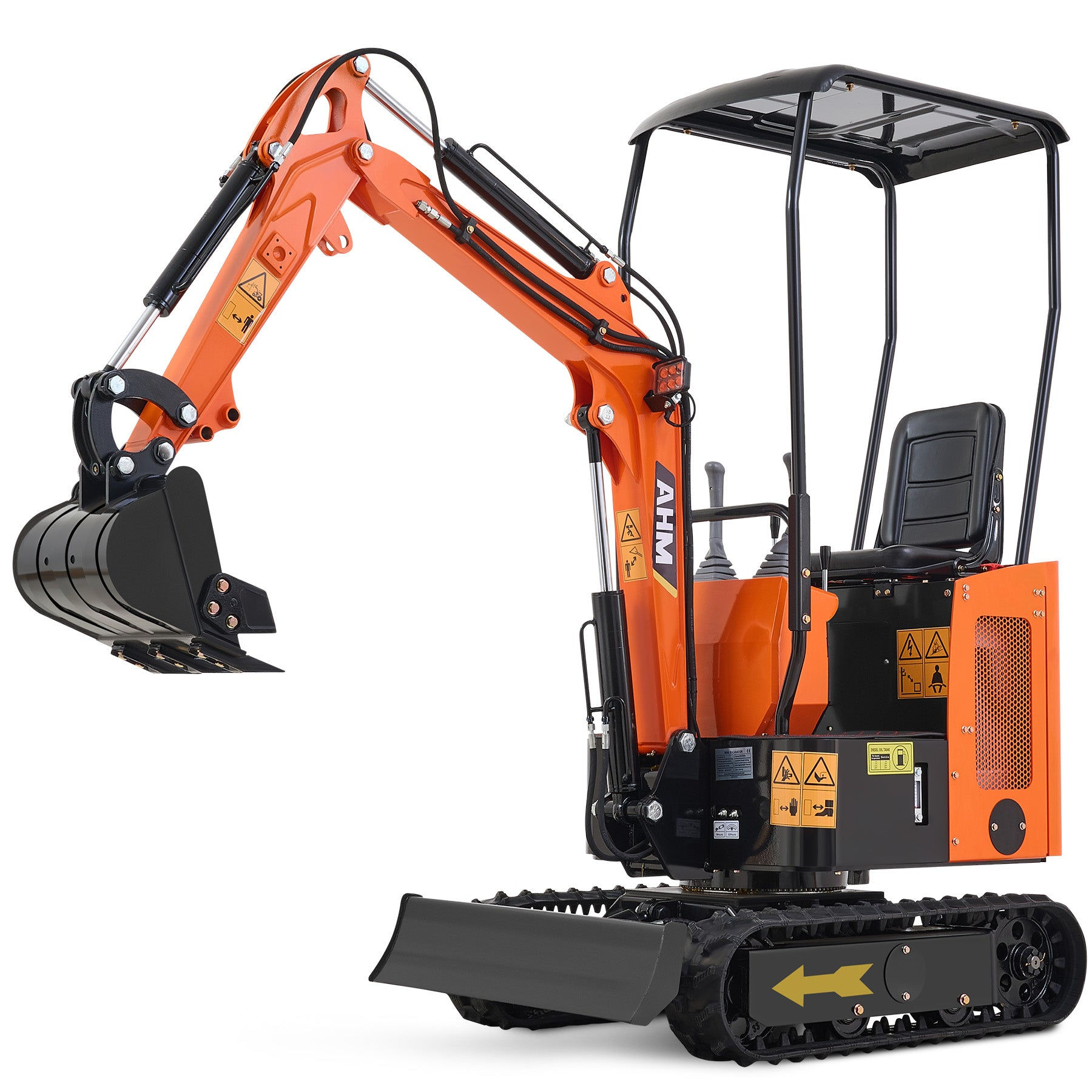

AX-15 | 13.8 HP Kubota Engine Mini Excavator
Description
Compact and straightforward, the AX-15 is a mini excavator running a 13.8 HP Kubota diesel engine designed for trenching, footings and landscape work.
Description Get your heavy duty work done with this versatile 1.1 ton mini excavator by AHM. With its lightweight design, this compact digging machine offers outstanding maneuverability for work in backyards, narrow alleys, and other tight spaces. Our mini trencher provides a maximal digging depth of 5 feet 8 inches and a radius of 10 feet to help you dig foundations, bury downspout lines, install electrical services, and more.
Rubber tracks spread the weight, so the machine can cross lawns, block paving and soft ground without wrecking the surface.
Common jobs include utility trenching, foundation digging, landscape reshaping, and site clearance where lorries and larger machines cannot get in.
Features
Rubber tracked undercarriage
Rated Power: 13.8 hp
Bucket Width: 15.7 in. (400 mm)
Max. Bucket Digging Force: 2698 lbf (12 KN)
Max. Digging Depth: 68.9 in. (1750 mm)
Dozer Depth: 7.8 in. (200 mm)
Net Weight: 1940 lb. (880 kg)
Engine Power: 13.8 HP
Specifications
Material: Steel, Rubber
Rated Torque: 33.2 lb.-ft. @ 2600 rpm
Rated Power: 13.8 hp
Fuel Tank Volume: 2.6 gal. (9.7 L)
Fuel Consumption: 0.3 gal./h (1 L/h)
Hydraulic Tank Volume: 3.4 gal. (12.7 L)
Overall Track Length: 48.5 in. (1230 mm)
Platform Ground Clearance: 16.2 in. (410 mm)
Bucket Volume: 0.9 ft3 (0.03 m3)
Bucket Width: 15.7 in. (400 mm)
Max. Bucket Digging Force: 2698 lbf (12 KN)
Overall Height: 7.4 ft. (2240 mm)
Max. Digging Depth: 68.9 in. (1750 mm)
Max. Dumping Height: 62.6 in. (1590 mm)
Max. Digging Radius: 120 in. (3050 mm)
Dozer Height: 12.6 in. (320 mm)
Dozer Depth: 7.8 in. (200 mm)
Max. Slope Grade: 30°
Net Weight: 1940 lb. (880 kg)
Warranty: 1 Year
Engine Power: 13.8 HP
Engine: Kubota diesel
Figures as published for this model; confirm critical dimensions before ordering.
