AX-16 | 23 HP 1.3 Ton B&S Engine Mini Excavator
Description
The AX-16 is a 1.3-tonne mini excavator running a 23 HP Briggs & Stratton engine aimed at contractors who need real digging capability in a machine that still fits through a gate.
Description Get your heavy duty work done with this versatile 1 ton mini excavator by AHM. With its lightweight design, this compact digging machine offers outstanding maneuverability for work in backyards, narrow alleys, and other tight spaces. Our mini trencher provides a maximal digging depth of 6 feet and a radius of 9 feet 6 inches to help you dig foundations, bury downspout lines, install electrical services, and more.
The tracked undercarriage keeps ground pressure low and grip high on wet or loose material.
It suits drainage runs, footing excavation, root and stump work, levelling for slabs and sheds, and clearing tight back gardens.
This size is the usual answer when getting the machine to the dig is harder than the dig itself: gate access, easy transport, low ground pressure.
Features
Rubber tracked undercarriage
Rated Power: 23 hp
Bucket Width: 15.7 in. (400 mm)

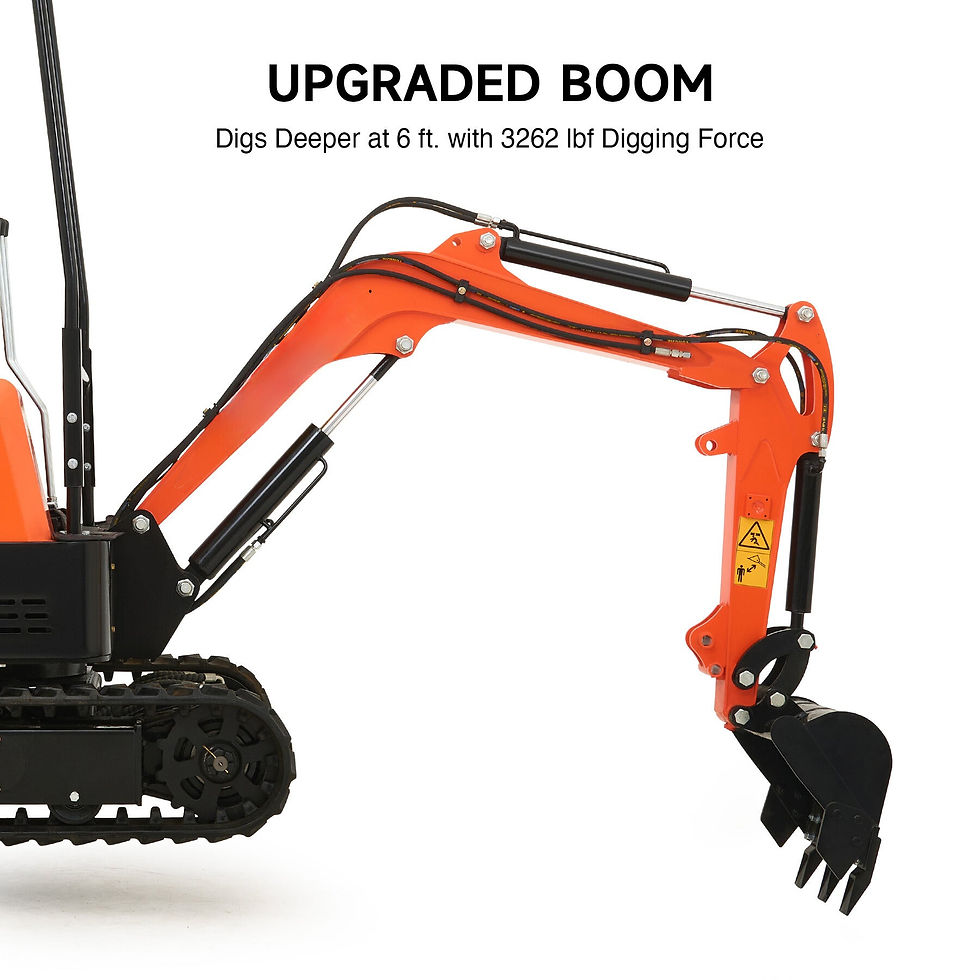

Max. Bucket Digging Force: 3262 lbf (14.5 KN)
Max. Digging Depth: 70.6 in. (1795 mm)
Dozer Depth: 10.6 in. (270 mm)
Load Capacity: 1 Ton (2000 lb. or 980 kg)
Engine Power: 23 HP
Specifications
Material: Steel, Rubber
Rated Torque: 35 lb.-ft. @ 3060 rpm
Rated Power: 23 hp
Fuel Tank Volume: 2.1 gal. (8 L)
Fuel Consumption: 0.4 gal./h (1.5 L/h)
Hydraulic Tank Volume: 3.4 gal. (12.7 L)
Overall Track Length: 48.5 in. (1230 mm)
Platform Ground Clearance: 16.2 in. (410 mm)
Bucket Volume: 0.9 ft3 (0.03 m3)
Bucket Width: 15.7 in. (400 mm)
Max. Bucket Digging Force: 3262 lbf (14.5 KN)
Overall Height: 7.3 ft. (2200 mm)
Max. Digging Depth: 70.6 in. (1795 mm)
Max. Dumping Height: 59.2 in. (1505 mm)
Max. Digging Radius: 114.2 in. (2900 mm)
Dozer Height: 12.2 in. (310 mm)
Dozer Depth: 10.6 in. (270 mm)
Max. Slope Grade: 30°
Load Capacity: 1 Ton (2000 lb. or 980 kg)
Warranty: 1 Year
Operating Class: 1.3 ton
Engine Power: 23 HP
Engine: Briggs & Stratton
Figures as published for this model; confirm critical dimensions before ordering.
