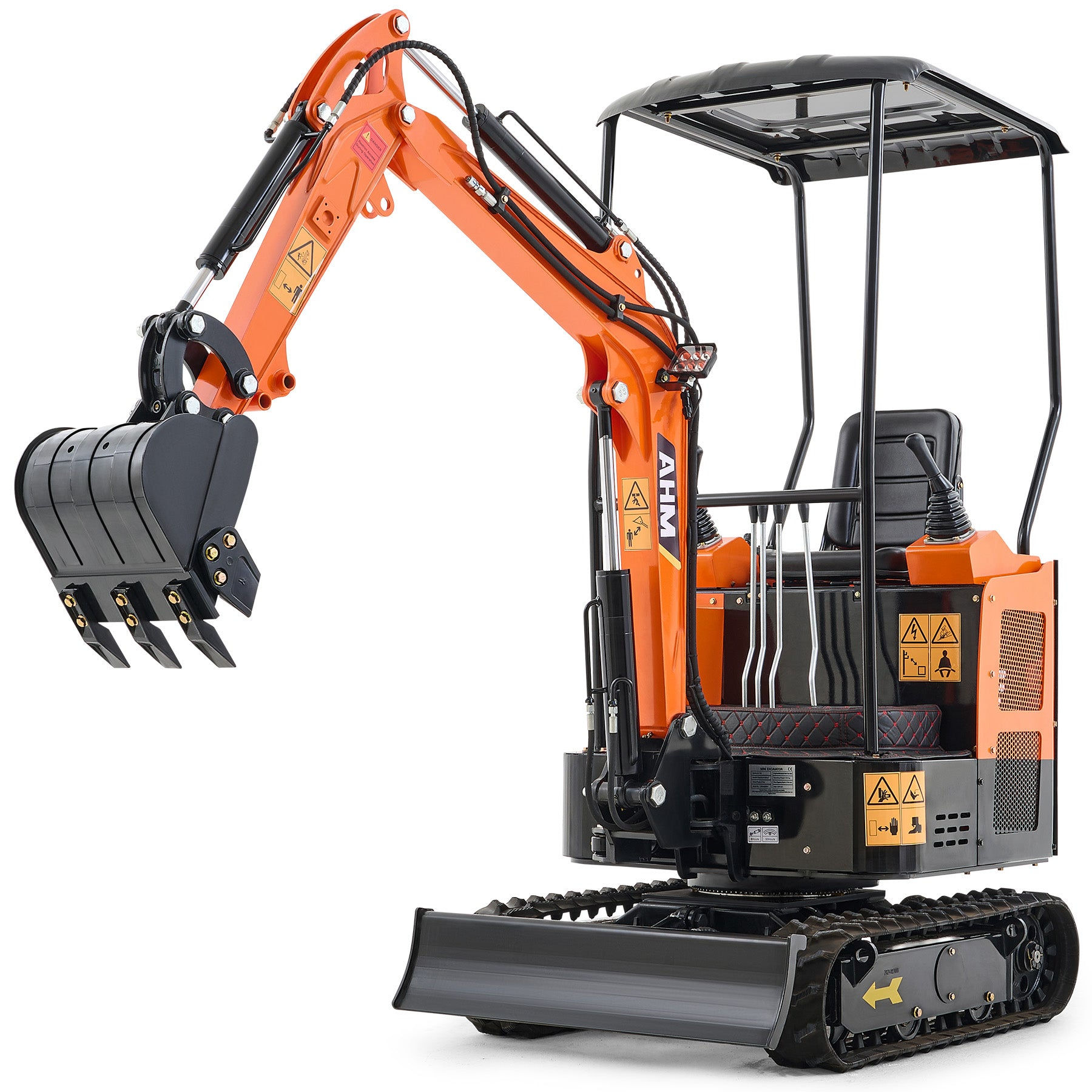

AX-16C | 23 HP B&S Engine Mini Excavator with Swing Boom
Description
The AX-16C is a mini excavator running a 23 HP Briggs & Stratton engine aimed at contractors who need real digging capability in a machine that still fits through a gate.
Description AHM 1-ton mini excavator delivers powerful performance in tight spaces such as narrow streets, gardens, and backyards. digging depth and a lightweight design, this mini crawler is perfect for a variety of construction tasks. The easy-to-use joysticks and hydraulic pilot lock switch ensure smooth control and safety, even for novice operators.
A side-swing boom means trenches can be cut tight to boundaries and buildings — the difference between digging a footing and hand-digging it. Rubber tracks spread the weight, so the machine can cross lawns, block paving and soft ground without wrecking the surface.
It suits drainage runs, footing excavation, root and stump work, levelling for slabs and sheds, and clearing tight back gardens.
Features
Side-swing boom
Rubber tracked undercarriage
Engine Power: 23 hp (17.2 kW)
Max. Load Capacity: 264.5 lb. (120 kg)
Bucket Width: 15.7 in. (400 mm)
Max. Digging Depth: 70.7 in. (1795 mm)
Max. Vertical Digging Depth: 62.8 in. (1595 mm)
Max. Digging Force: 3260 lbf (14.5 kN)
Specifications
Material: Steel, Rubber
Engine Power: 23 hp (17.2 kW)
Max. Load Capacity: 264.5 lb. (120 kg)
Max. Slope Grade: 30°
Bucket Volume: 0.9 ft3 (0.025 m3)
Bucket Width: 15.7 in. (400 mm)
Max. Digging Depth: 70.7 in. (1795 mm)
Max. Vertical Digging Depth: 62.8 in. (1595 mm)
Max. Digging Force: 3260 lbf (14.5 kN)
Max. Digging Radius: 114.2 in. (2900 mm)
Max. Dumping Height: 59.3 in. (1505 mm)
Max. Dozer Lift: 12.2 in. (310 mm)
Max. Dozer Depth: 10.6 in. (270 mm)
Fuel Consumption: 0.4 gal/h (1.5 L/h)
Fuel Tank Volume: 1.8 gal. (7 L)
Net Weight: 1962 lb. (890 kg)
Engine: Briggs & Stratton
Figures as published for this model; confirm critical dimensions before ordering.
