AY-25J | 25 HP Perkins Diesel 2.5 Ton Mini Excavator w/ Swing Boom & Adj. Speed
Description
The AY-25J packs 2.5-tonne excavator capability running a 25 HP Perkins diesel engine into a footprint that suits confined residential and light commercial sites.

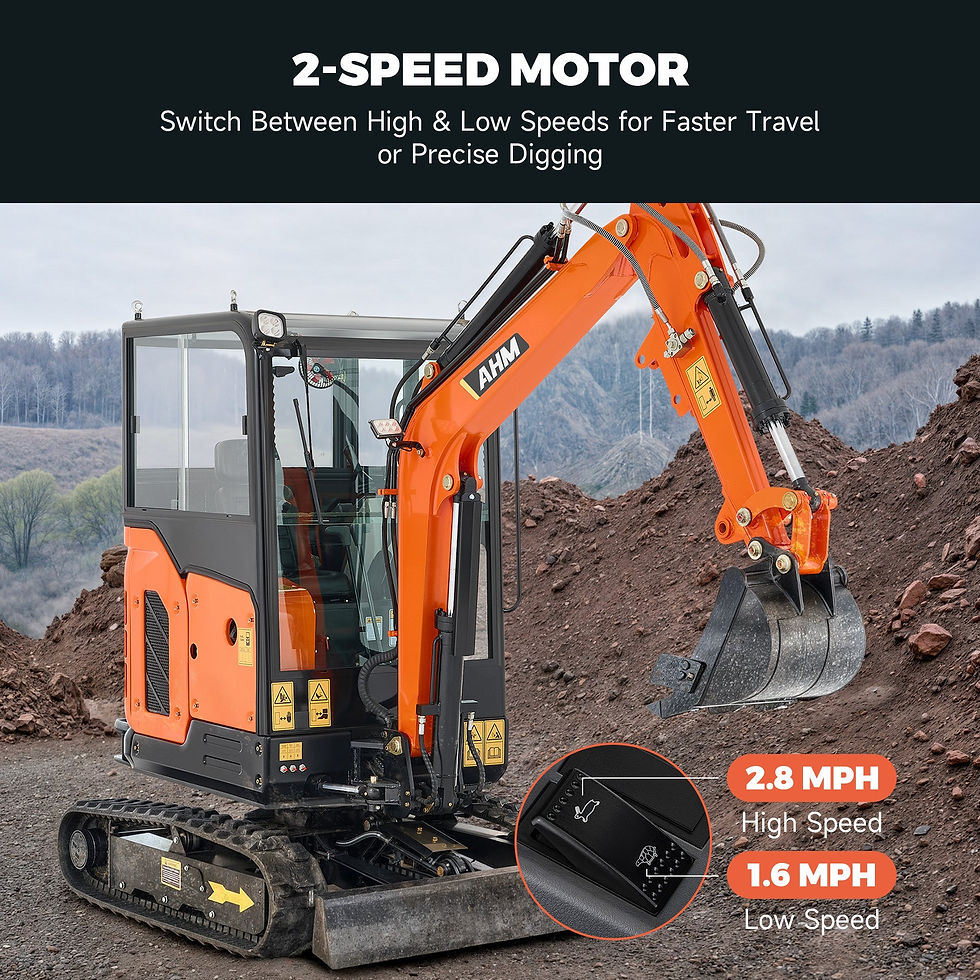

Description Whether you're digging in tight spaces or maneuvering around obstacles, this 2.5-ton mini excavator by AHM delivers the power and precision you need. Powered by a 25 hp EPA engine, it handles everything from landscaping to earthmoving with ease. The adjustable motor speeds, offering 2.8 mph for faster movement and 1.6 mph for controlled digging, provide the flexibility you need for any task.
A side-swing boom means trenches can be cut tight to boundaries and buildings — the difference between digging a footing and hand-digging it. The engine is EPA certified, which matters for hire fleets and any commercial use.
Well matched to groundworks, landscaping, fencing, drainage and small demolition tidy-up.
This is the size where a mini excavator stops being an access machine and starts being the main machine on site.
Features
Side-swing boom
EPA-certified engine
Engine Power: 25 hp (18.4 kW)
Max. Load Capacity: 992 lb. (450 kg)
Bucket Width: 16.9 in. (430 mm)
Max. Digging Depth: 9 ft. (2752 mm)
Specifications
Material: Steel, Rubber
Engine Power: 25 hp (18.4 kW)
Max. Load Capacity: 992 lb. (450 kg)
Max. Slope Grade: 25°
Bucket Volume: 1.8 ft3 (0.05 m3)
Bucket Width: 16.9 in. (430 mm)
Max. Digging Depth: 9 ft. (2752 mm)
Max. Digging Height: 11 ft. 3 in. (3427 mm)
Max. Digging Radius: 14 ft. 5 in. (4387 mm)
Fuel Consumption: 0.8 gal/h (3 L/h)
Fuel Tank Volume: 4.2 gal. (16 L)
Operating Class: 2.5 ton
Engine: Perkins diesel
Figures as published for this model; confirm critical dimensions before ordering.
